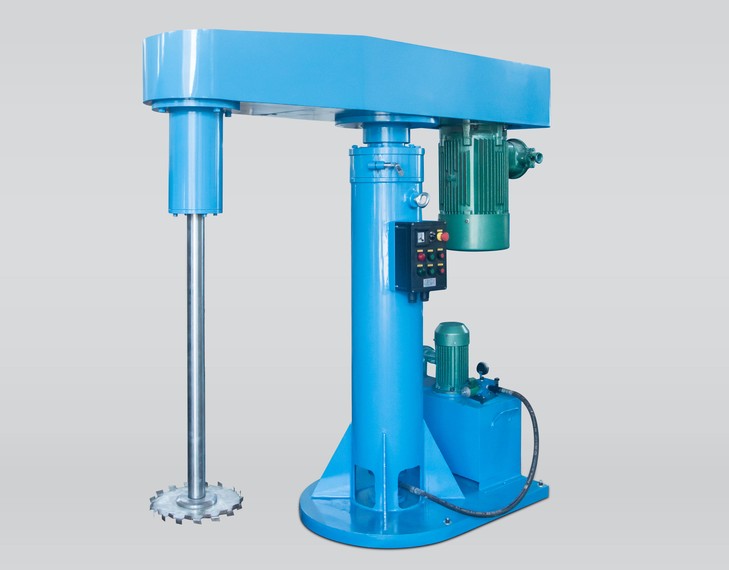

High Speed Disperser and Dissolver

Technique

The dissolver is a fast, high-capacity disperser with a wide range of speeds and high level of efficiency

Push-button speed control

Speed indicator and automatic speed reduction

The product is accelerated radially by the dispersion disk, deflected to the top and bottom at the tank wall and directed back to the dispersion disk through formation of a vortex

Shear forces around the circumference of the toothed disk result in highly efficient dispersion, good wetting and deagglomeration

For high-viscosity products, a tank wall scraping device can aid the mixing and dispersing process

Hydraulic lifting/lowering device

Push-button stroke adjustment
Adjustable tank clamping mechanism
Stainless steel shaft and dispersion disk; additional product-specific mixing tools available depending on the application
Manufactured in accordance with CE guidelines

Options
∙Application-specific tank cover designs
Vacuum design
∙Scraping device for tank wall
Temperature sensor
Timer
Design for ceiling installation with hinged head
Various explosion protection ratings
Special tank clamping mechanisms
PLC-controlled units
Advantage
Easy handling which reduces costs and time
Customized solutions on request
A wide range of variously equipped versions available for highest process safety
Various, easily exchangeable mixing tools to increase the efficiency
Temperature measurement by wand or agitator shaft which increases the reliability of the production process
Optimal positioning of the mixing tool via hydraulic lifting/lowering device
Dissolver only starts When the vessel is correctly positioned
At the lowest possible speed
Two-handed operation for lifting/lowering of the tank cover (optional design)
Automatic switch-off, if the toothed disks are lifted above the level of the tank
Protection against accidental contact with the rotating shaft
Bellows serving as dust protection for the shaft

SPECIFICATION:

Model	FL1.5/2.2	FL2.2/4	Frame FG250		Frame FG350		Special Form
			FL5.5/7.5	FL11	FL15	FL22	FL45	FL90
	FX1.5/2.2	FX2.2/4	FX5.5/7.5	FX11	FX15	FX22	FX45	FX90
Motor power,kw	1.5/2.2	2.2/4	5.5/7.5	9/11	9/11/15	18.5/22	32/42	90
Speed,rpm	0-1200	0-1200 /1065/ 2130	0-1200 /1065/ 2130	0-1200 /1065/ 2130	0-1200 /1065/ 2130	0-1200 /1065 /2130	0-1200 /1065/ 2130	1000  (adjustable)
Mixer diameter,mm	150	200-300	250	250-280	250-300	350-400	450-500	600
Lift height,mm	500	800	900	900	1100	1100	1600	1800
Hydraulic pump power,mm	0.75	0.75	0.75	0.75	1.1	1.1	2.2	2.2
Capacity, L	<50	<200	<400	<500	<800	<1200	<2000	<5000
Weight, KG	300	500	700	800	1200	1500	2500	4000
Size-A	1200	1700	1820	1820	2400	2400	2800	3400
Size-B	1000	1500	1800	1800	2200	2200	2700	3000
Size-C	515	650	900	900	1100	1200	1465	1600
Size-D	400	500	750	750	900	900	1100	1200
