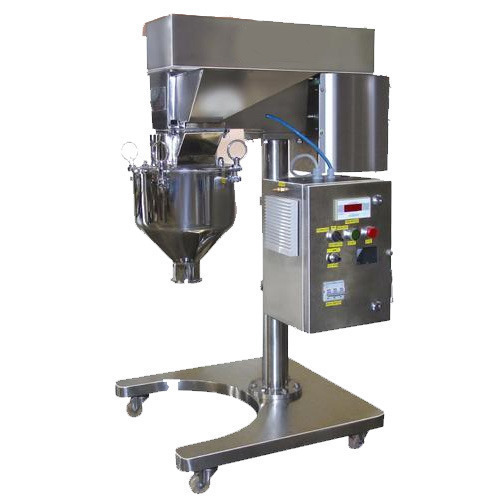

Multi Mill Machine

Multi Mill is used for high speed Granulating, Pulverizing, Mixing, Shredding and Chopping etc. of a wide range of wet and dry materials without special attachments. As compared to the four common principal of reduction, i.e. grinding, compression, impact and shearing, which do not produce controlled size machine utilizes the principle of variable force swing hammer blades having both knife and impact edges rotating reduction, this with a carefully selected screen to control size reduction. The Lab Multi Mill is used in laboratories for research and development due to which it is also known as R&D Multi Mill. It is also known by the names Mini Multi Mill, Small Multi Mill and Compact Multi Mill due to its small and compact size.

Flow path of material in vertical rotor machine is streamlined. During comminuting, material entering the chamber travels to the periphery and passes through the screen tangentially and radially avoiding chocking and temperature rise.

The multi mill is most suitable for dry pulverization of lumps to small particles to small particles of the desired size by high shear action. The compact multi mill offers a high degree of automation, safety, and stable performance. The unbeatable range of R&D multi mill is a very affordable and mobile tool for dry and wet granulation as well as pulverizing, mixing shredding, and chopping. A unique feature of this machine is that a wide range of wet and dry drug materials can be added to this industrial machine without the need for special attachments. It is a very elegant, compact, and proven design model and can be used with less electric power.

Special features:

  • Machine portable on castor wheels
  • High output with process uniformity
  • Direction of the blade rotation can be change using a reversing switch for hammer or knife operation
  • Multiple combinations of Screens/ Speeds/ Number of Blades
  • Direction of blade rotation for every product type
  • High Screen opening area for Higher Throughput
  • Easy dismantling and cleaning of all components reducing

Technical Specification:

Model No. MI2 MI3
Output 200 Kgs./hour 300Kgs./ hour
Electrical 415 V, 50 Hz, 1440 RPM
Motor 3 H.P. 0.5 H.P.
Operation VFD Speed Control Based VFD Speed Control Based
No. of Beater 12 Nos. 8 Nos.
Change Parts SS Perforated Screen (Holes Dia MM)
  1. 0.5, 1.0, 1.5 Sizes
  2. 2, 3, 4, 5, 6
  3. 7, 8, 10, 15, 20,25
Optional Features FLP Motor, FLP Panel
